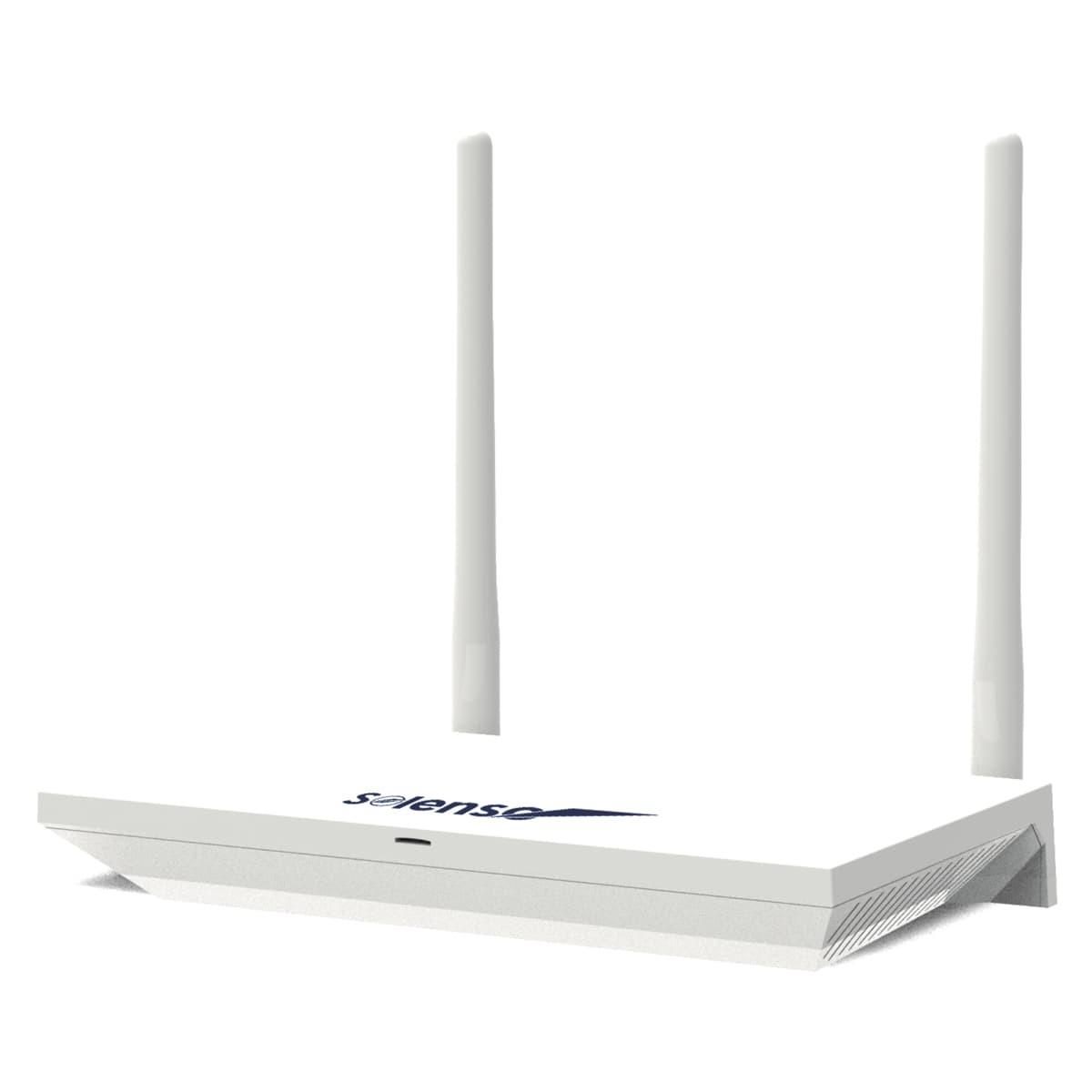

Energy monitoring : DTU SLV

Energy monitoring DTU SLV

THE GATEWAY THAT LINKS UP TO 100 MICROINVERTERS TO THE SOLENSO PLATFORM, OVER WI-FI OR ETHERNET

Limit
100 panels
Communication
Sub-1G
Dimensions
200mm*120mm*30mm
  • Monitoring and data storage at module level

  • Built-in Wi-Fi for the local installation assistant

  • Stronger communication with the microinverter and the monitoring server.

  • More accurate monitoring of PV production and load consumption

  • Supports power export limitation and zero export applications

  • Works with the Modbus RTU and TCP protocols, so power and production are easy to see on the monitoring platform.

  • Alternative ports (RJ-45, USB and RS485), which makes it easier to reach control devices and manage solar production

*Product images shown may represent the product range, or be for illustration only, and may not depict the product exactly.

Technical specifications

DTU-SLV
Communication with microinverters
Communication methodSub-1G
Maximum distance (open field)400 m
Maximum number of microinverters100
Communication with the Solenso platform
Wi-FiIEEE 802.11b/g/n
EthernetRJ45 × 1, 100 Mbit/s
Interfaces
USBUSB 3.0
BluetoothBluetooth 5.2
RS4852 COM ports, 9,600 / 12,500 bit/s, Modbus RTU
DRM (Australia and New Zealand)RJ45 × 1, DRM0/5/6/7/8
Power supply
AC supply110 to 277 V AC, 50 to 60 Hz
DC supply12 V / 2 A
Consumption1.0 W
Mechanical data and compliance
Operating temperature-25 to +55 °C
Dimensions200 × 120 × 30 mm
Protection ratingIP20
ComplianceEN 300 328, EN 62311, IEC/EN 62368-1:2018, EN 301 489-1/-17, EN 55032/35, EN 18031-1:2024

2-year product warranty
