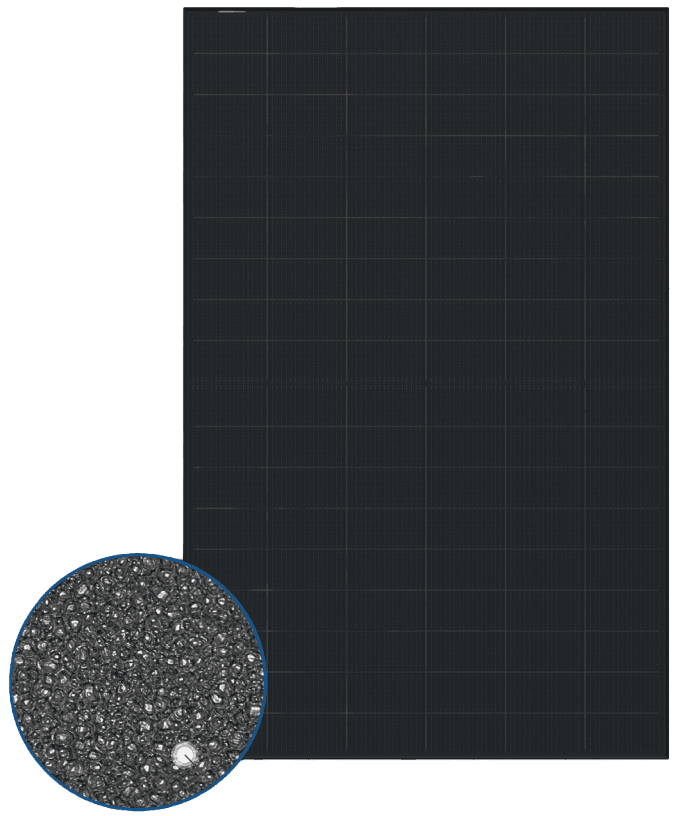

Solar panel
ICON-54M10RC3G R-Series AG
AG ANTI-GLARE GLASS BIFACIAL N-TYPE MODULE
Max power
490 – 505 W
Weight
~26.6 kg
Rated voltage
30.65 VmPP
Efficiency
Up to 22.71 %
Dimensions
1961*1134*30 mm
Max test load
+ 5400 PA // – 4000 PA
Bifacial energy generation:
The bifacial generation gain grows as the rear face is exposed to light, which brings the levelised cost of energy down considerably.
Anti-PID (potential induced degradation):
Anti-PID test passed at 85 °C damp heat and 85 % relative humidity for 192 hours.
Excellent durability in extreme conditions:
Salt mist and ammonia corrosion tests passed, along with dust, sand and fire tests, all certified by TÜV.
Outstanding resistance to mechanical loads:
Withstands a wind load of 2400 Pa and a snow load of 5400 Pa.
Download the datasheet
