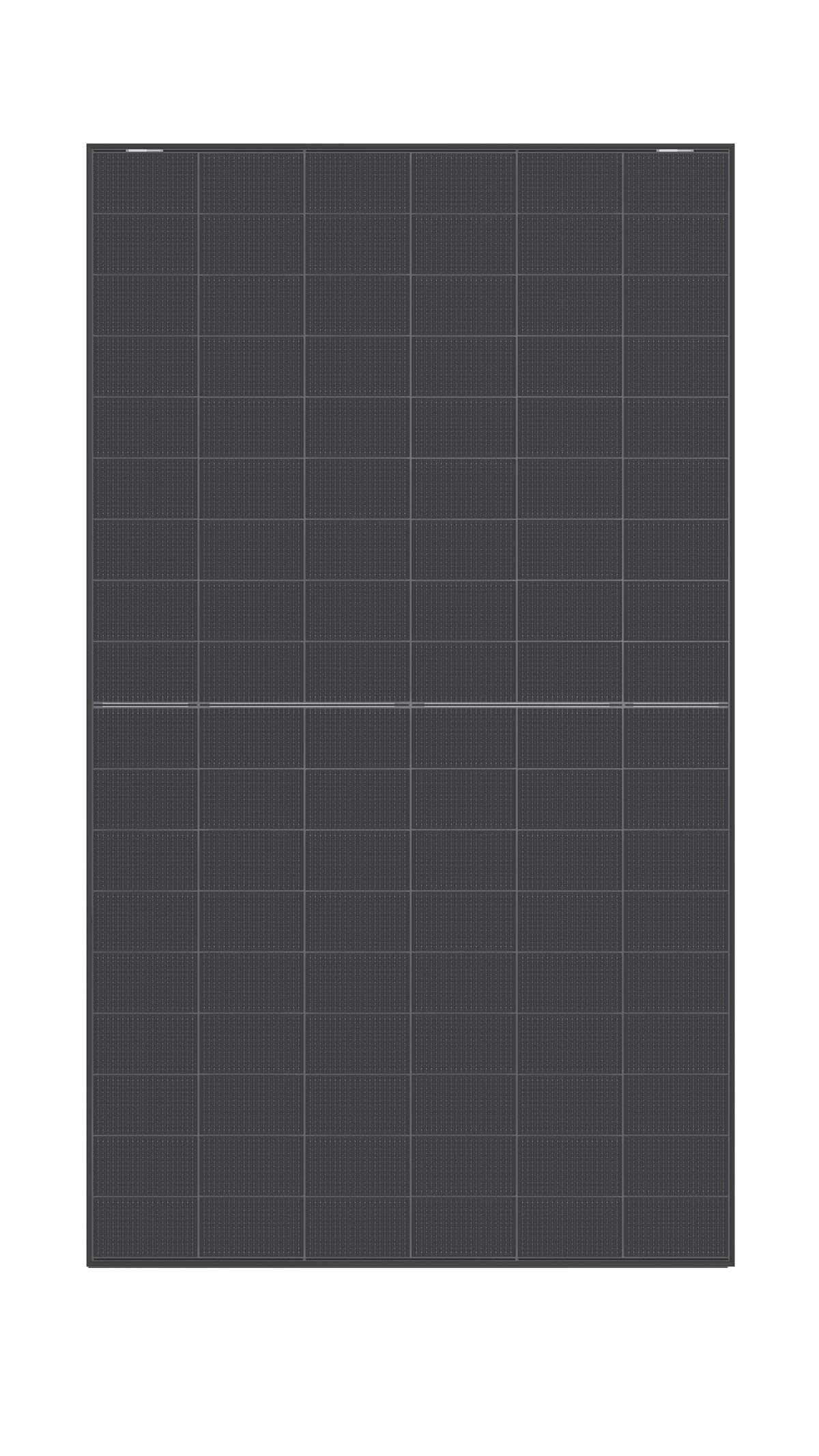

Solar panel ICON-54M10RC3G
ICON-54M10RC3G-490 | ICON-54M10RC3G-495 | ICON-54M10RC3G-500 | ICON-54M10RC3G-505 |

Max power
490-505 Wp

Weight
~26.6 kg

Rated voltage
30.65 VmPP

Efficiency
Up to 22.71 %

Dimensions
1961*1134*30mm

Max test load
+ 5400 PA // – 4000 PA
Cutting-free technology
Microcracks kept to a minimum.
Bifacial monocrystalline module
Able to generate energy on the rear face, at no less than 80 % of the front face efficiency.
Reduced levelised cost of energy (LCOE)
Less shading and resistive loss, with a lower temperature coefficient.
Outstanding mechanical strength
Withstands wind loads of 2400 Pa and snow loads of 5400 Pa.
Documentation to download
Mounting systems covered by an ETN
This panel is covered by a French technical assessment (ETN, enquête de technique nouvelle) with the following mounting systems. Each link opens the corresponding report, in French.
