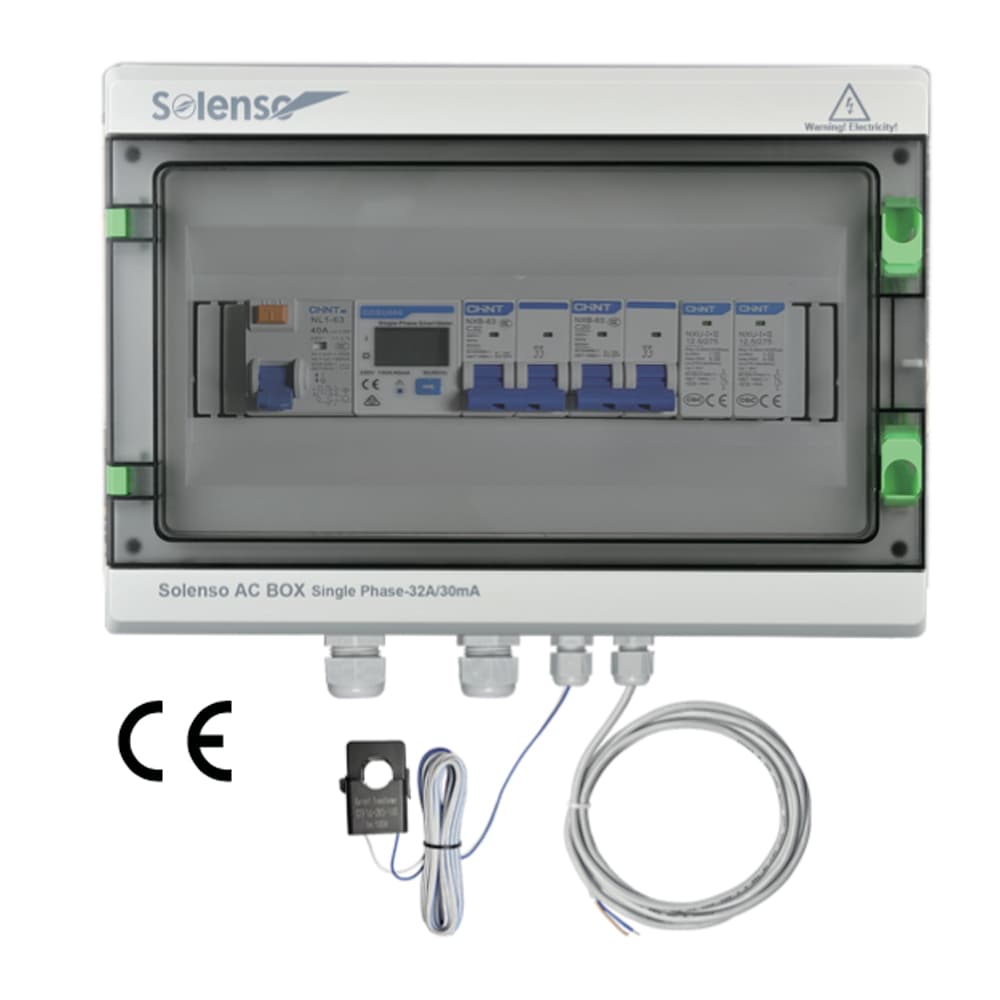

Single-phase AC protection enclosure AC BOX – S3 / S6

Max power
3000 W (S3), 6000 W (S6)

Weight
~3.5 kg

Rated voltage
220-240 V AC / 50 Hz

Ingress protection
IP65 with double insulation

Dimensions
298*260*140mm

Cooling
Natural convection
Advanced environmental protection
IP65 rated with double insulation, protected against dust, water and extreme conditions.
Simplified installation
An intuitive design that allows fast installation without rebuilding a complex internal circuit.
Real-time display
Connects to a DTU unit to follow production and consumption from the Solenso mobile app.
Built-in safety components
Includes a circuit breaker, a surge arrester, a residual current device and a current transformer for maximum safety.
Documentation to download
*Product images shown may represent the product range, or be for illustration only, and may not depict the product exactly.
