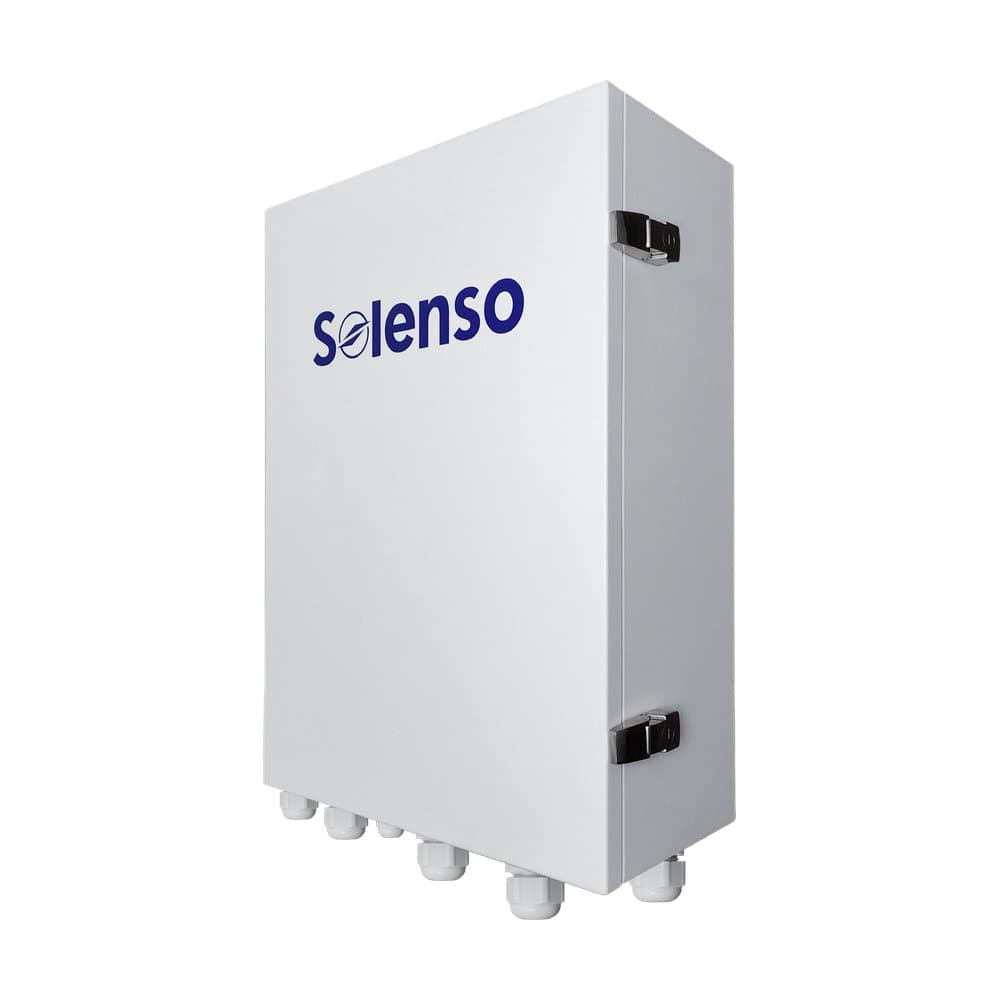

Single-phase AC protection box AC BOX S-lite
LIGHTWEIGHT SINGLE-PHASE AC BOX FOR MICROINVERTERS AND BATTERIES, UP TO 10 KW
- Max Power
- 10 kW
- Rated Voltage
- 230 V AC L+N+PE
- Protection Rating
- IP65
- Standard
- NF C 15-100
Reliable outdoors
IP65-rated and double-insulated, the box is protected against dust, water and other environmental hazards. It installs outdoors and operates from -35 to 70 °C.
Easy installation
Delivered fully wired, it saves rebuilding a complete distribution board on site: installation is fast and needs no rework.
Production and consumption at a glance
The AC BOX S-lite communicates with the DTU: household production and consumption can be followed on the Solenso monitoring platform and app.
Documentation to download
*Product images may represent the product range, or be for illustration purposes only, and may not represent the product exactly.
Technical specifications
| ACBL-S | |
|---|---|
| Reference and components | |
| Reference | SAACBL-S-A-B-V2 |
| Meter | DDSU666 |
| Two-pole circuit breaker | NXB-63/2P C32A |
| Type B RCBO | GYR9NE-B 1P+N C32A 300 mA type B |
| Type A RCBO | GYR10NE 1P+N C16A 30 mA type A |
| Surge protector | NXU-IIG 20 kA / 275 V 1P+N |
| Current transformer | Accuracy up to 1.0% |
| Electrical specifications | |
| Maximum PV input | 10 kW |
| Maximum output power | 10 kW |
| Maximum rated current (input) | 43.5 A |
| Rated voltage | 230 V AC L+N+PE |
| Mechanical data | |
| Dimensions (W × H × D) | 350 × 450 × 130 mm |
| Weight | 13.5 kg |
| Ambient temperature range | -35 to 70 °C |
| Protection rating | IP65 |
| Cooling | Natural convection |
| Compliance | NF C 15-100 |
