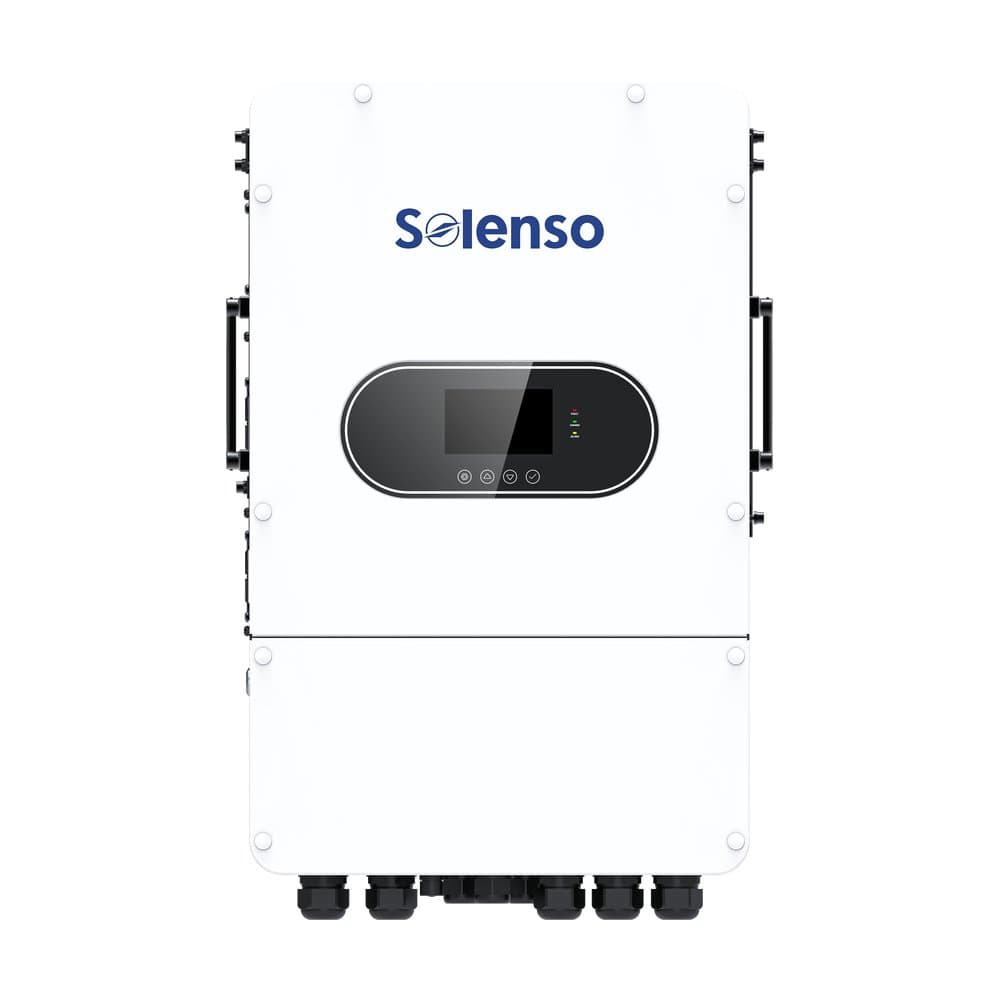

Three-phase AC coupler SoWave Three Phase Series

THREE-PHASE STORAGE FROM 8 TO 12 KW FOR SG SERIES MICROINVERTER SYSTEMS

Rated Power: 8, 10 or 12 kVA
Charge and Discharge: Up to 260 A
Protection Rating: IP65
Max Efficiency: 97.5%

Storage for microinverters already in place
The coupler connects on the AC side to an existing three-phase SG series microinverter system and adds a battery, without touching the panels.
Off-grid operation
Its grid-forming function keeps SG series microinverters producing off-grid, with a pure sine wave three-phase output.
Dynamic phase balancing
Current on the three phases is rebalanced continuously. Short-term overload capacity of up to 6 HP for motor starts.
Smart energy management
Built-in energy and battery management system, several storage modes to choose from, 51.2 V lithium-ion or lead-acid batteries.

Documentation to download

*Product images may represent the product range, or be for illustration purposes only, and may not represent the product exactly.

Technical specifications

Grid port
	SoWave-TL8	SoWave-TL10	SoWave-TL12
Rated output power (VA)	8,000	10,000	12,000
Rated output current per phase (A)	11.6	14.5	17.4
Rated output voltage (V AC)	230 / 400
Current THD	< 3%
Power factor	0.999 (adjustable from 0.8 overexcited to 0.8 underexcited)
Motor start capacity	5 HP	6 HP	6 HP
Rated frequency (Hz)	50 / 60
Backup port (EPS)
Rated output power (VA)	8,000	10,000	12,000
Rated output current per phase (A)	11.6	14.5	17.4
Rated output voltage (V AC)	230 / 400
Current THD	< 3%
Motor start capacity	5 HP	6 HP	6 HP
Rated frequency (Hz)	50 / 60
Microinverter input port
Maximum input power (VA)	16,000	20,000	24,000
Rated current per phase (A)	23.2	29	35
Maximum input power per phase	5 / 5 / 6	6 / 7 / 7	8 / 8 / 8
Input voltage range	Phase voltage 170 to 280 V, line voltage 305 to 485 V
Battery
Maximum charge and discharge power (W)	9,216	11,264	13,312
Maximum charge and discharge current (A)	180	220	260
Rated battery voltage (V)	51.2
Battery voltage range (V DC)	44.8 to 56
Battery type	Lithium-ion, lead-acid or user-defined
Efficiency and protection
Maximum efficiency	97.5%
European efficiency	97.2%	97.5%	97.5%
Protection	Anti-backflow, overcurrent and overvoltage, AC short circuit, ground fault, insulation resistance
General data
Dimensions (W × H × D)	400 × 700 × 260 mm
Weight	39.2 kg
Protection rating	IP65
Operating temperature	-25 to 60 °C, derating above 45 °C
Relative humidity	0 to 100%
Cooling	Heat sink and smart fan cooling
Communication interfaces	RS485, CAN, USB
External module (optional)	Wi-Fi, GPRS
Certifications
Safety	IEC 62109-1, IEC 62109-2
Electromagnetic compatibility	EN 61000-6-1, EN 61000-6-3
RoHS	Compliant
