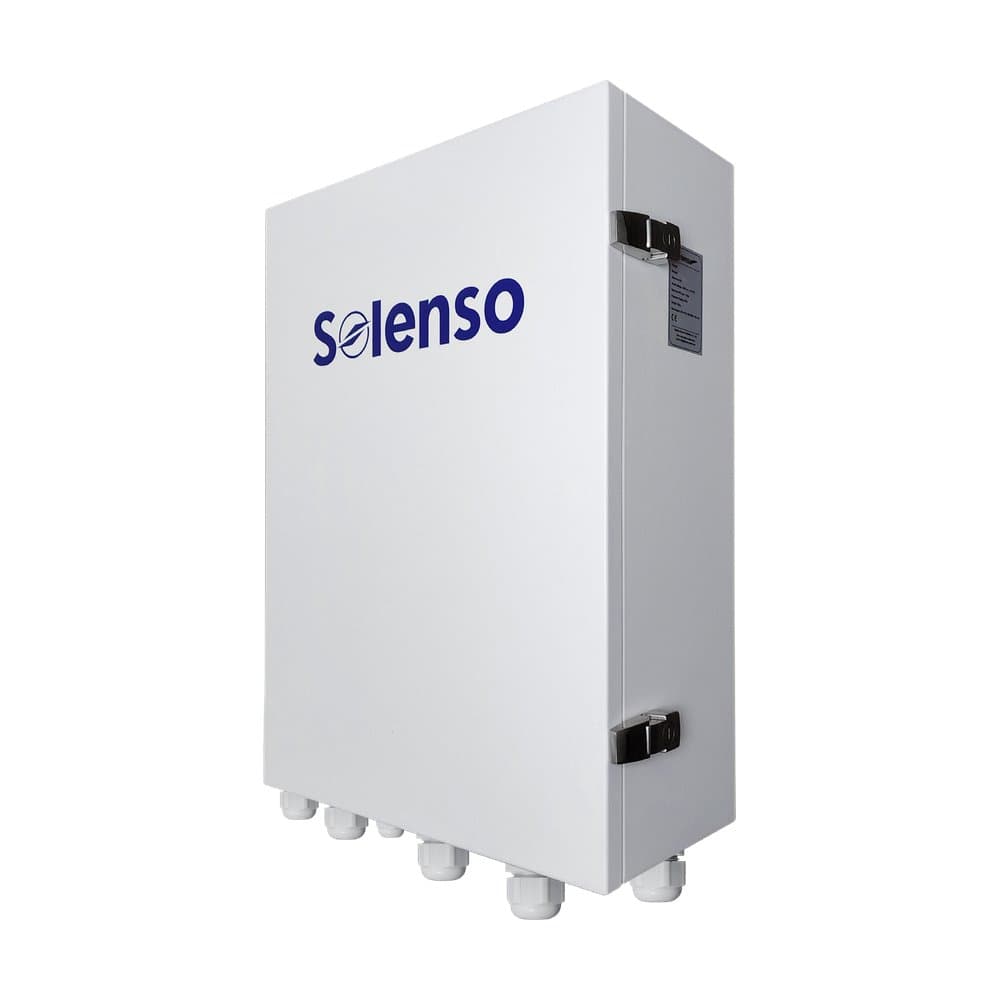

Three-phase AC protection box AC BOX TPlus
THREE-PHASE AC BOX WITH TRANSFER SWITCH, UP TO 24 KW
- Max Power
- 24 kW
- Rated Voltage
- 230-400 V AC
- Protection Rating
- IP65
- Standard
- NF C 15-100
Reliable outdoors
IP65-rated and double-insulated, the box is protected against dust, water and other environmental hazards. It installs outdoors and operates from -35 to 70 °C.
Easy installation
Delivered fully wired, it saves rebuilding a complete distribution board on site: installation is fast and needs no rework.
Production and consumption at a glance
The AC BOX TPlus communicates with the DTU: household production and consumption can be followed on the Solenso monitoring platform and app.
Built-in transfer switch
An automatic transfer switch NXZBN-63S/4B C50A completes the protection devices, to switch the household supply.
Documentation to download
*Product images may represent the product range, or be for illustration purposes only, and may not represent the product exactly.
Technical specifications
| ACBP-T-A | |
|---|---|
| Reference and components | |
| Reference | SAACBP-T-B-B-V1 |
| Automatic transfer switch | NXZBN-63S/4B C50A |
| Type B RCBO | ETL5-63B 3P+N C32A 300 mA type B |
| Two-pole circuit breaker | NXB-63/2P C32A |
| Four-pole circuit breaker | NXB-63/4P C32A |
| Surge protector | NXU-II G 20 kA / 275 V 3P+N |
| Meter | DTSU666 |
| Electrical specifications | |
| Maximum PV input | 24 kW |
| Maximum output power | 24 kW |
| Maximum rated current (input) | 50 A |
| Rated voltage | 230-400 V AC L1, L2, L3+N+PE |
| Mechanical data | |
| Dimensions (W × H × D) | 500 × 750 × 180 mm |
| Weight | 28.5 kg |
| Ambient temperature range | -35 to 70 °C |
| Protection rating | IP65 |
| Cooling | Natural convection |
| Compliance | NF C 15-100 |
In the same range
Single-phase AC protection enclosure
AC BOX-S6 6 kW
- Max power
- 6000 W
- Weight
- ~2.5 kg
- Rated voltage
- 220/230/240 V AC, 50 Hz
- Ingress protection
- IP65
Three-phase AC protection enclosure
AC BOX-T9 9 kW
- Max power
- 9000 W
- Weight
- ~3.5 kg
- Rated voltage
- 230/400 V AC, 50 Hz
- Ingress protection
- IP65
Single-phase AC coupler
SoWave Single Phase Series
- Max power
- 1 kW to 6 kW
- Weight
- ~18.5 kg
- Rated voltage
- 220-230 V / 50-60 Hz
- Ingress protection
- IP65
Single-phase AC protection enclosure
AC BOX – S3 / S6
- Max power
- 3000 W (S3), 6000 W (S6)
- Weight
- ~3.5 kg
- Rated voltage
- 220-240 V AC / 50 Hz
- Ingress protection
- IP65 with double insulation
Single-phase AC protection box
AC BOX S-lite
- Max Power
- 10 kW
- Rated Voltage
- 230 V AC L+N+PE
- Protection Rating
- IP65
- Standard
- NF C 15-100
Three-phase AC protection box

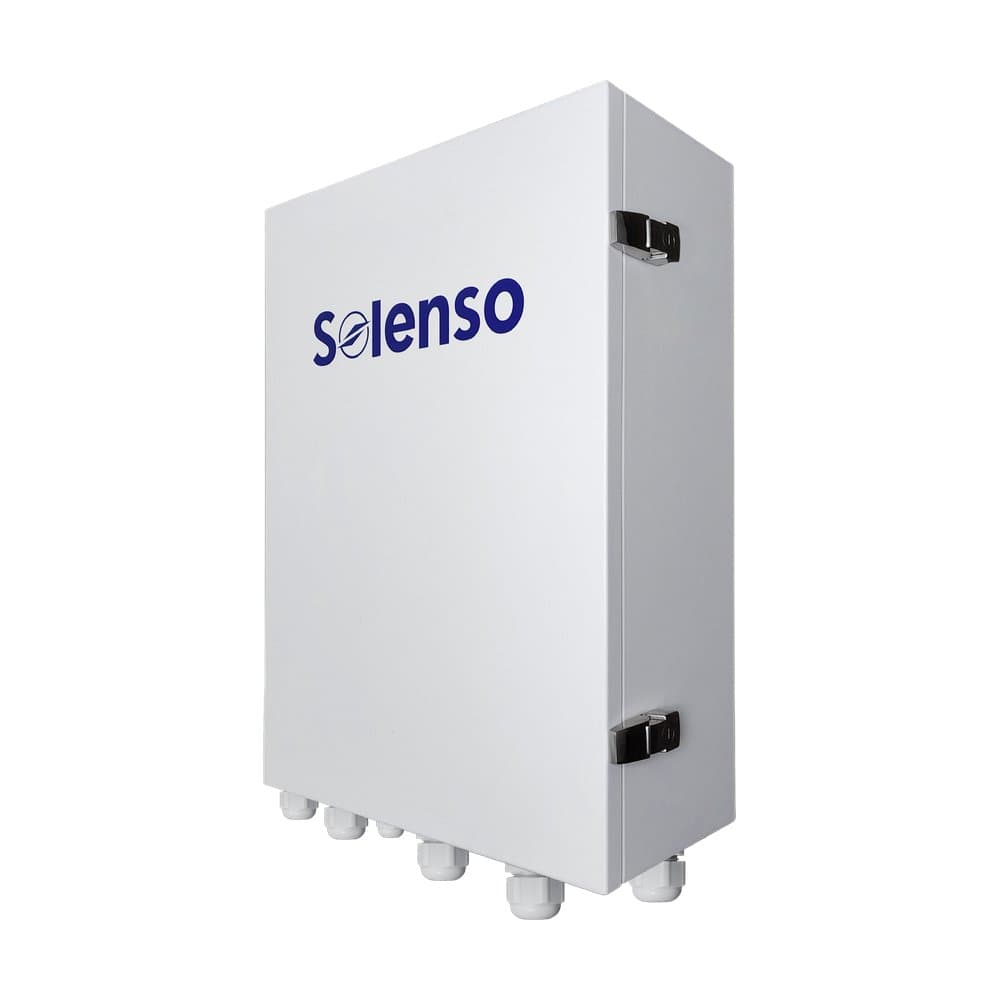

AC BOX T-lite
