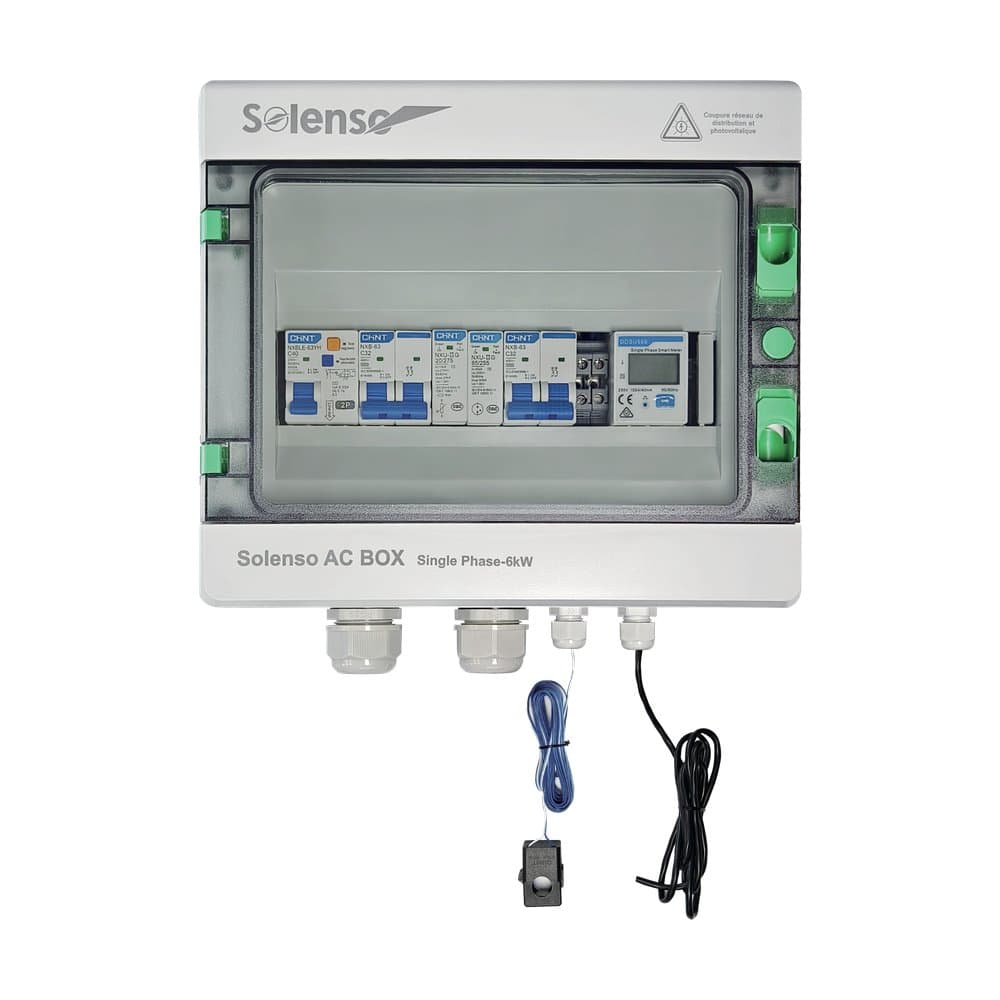

Single-phase AC protection enclosure AC BOX-S6 6 kW
Max power
6000 W
Weight
~2.5 kg
Rated voltage
220/230/240 V AC, 50 Hz
Ingress protection
IP65
Dimensions
297 × 257 × 138 mm
Cooling
Natural convection
Resistance to extreme environments
IP65 certified with double insulation, the AC box is protected against dust, water and harsh outdoor conditions. Built for outdoor installation, it keeps the supply stable from -35 °C to 70 °C.
Plug and play installation
A fully wired one-piece design for fast installation with no reassembly. Commissioning is immediate thanks to the standard interfaces such as the DTU.
Intelligent real-time monitoring
A direct connection to the DTU allows production and consumption to be viewed continuously on the Solenso platform and the mobile app.
Certified safety
Built-in equipment: • DTSU666 meter • NXB-63 4P C32A circuit breaker • NXBLE-63YH 4P C40A 30 mA RCD • NXU-II G 20 kA / 275 V 3P+N surge arrester • CT accurate to 1 %
Download the technical documents
*Product images shown may represent the product range, or be for illustration only, and may not depict the product exactly.
In the same range

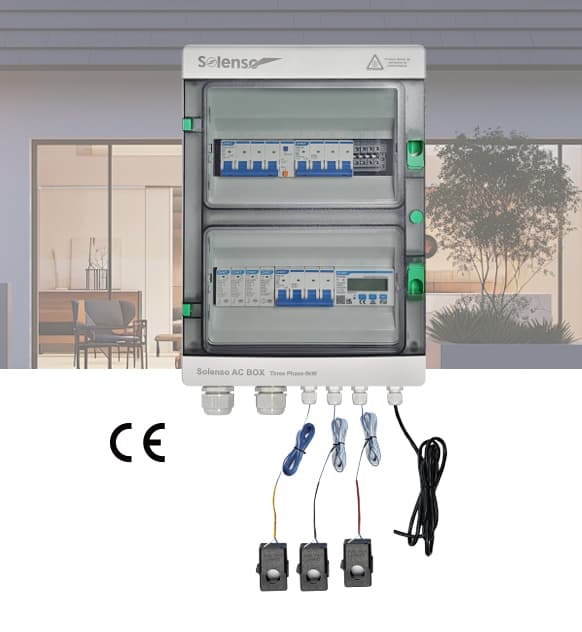

Three-phase AC protection enclosure
AC BOX-T9 9 kW
- Max power
- 9000 W
- Weight
- ~3.5 kg
- Rated voltage
- 230/400 V AC, 50 Hz
- Ingress protection
- IP65

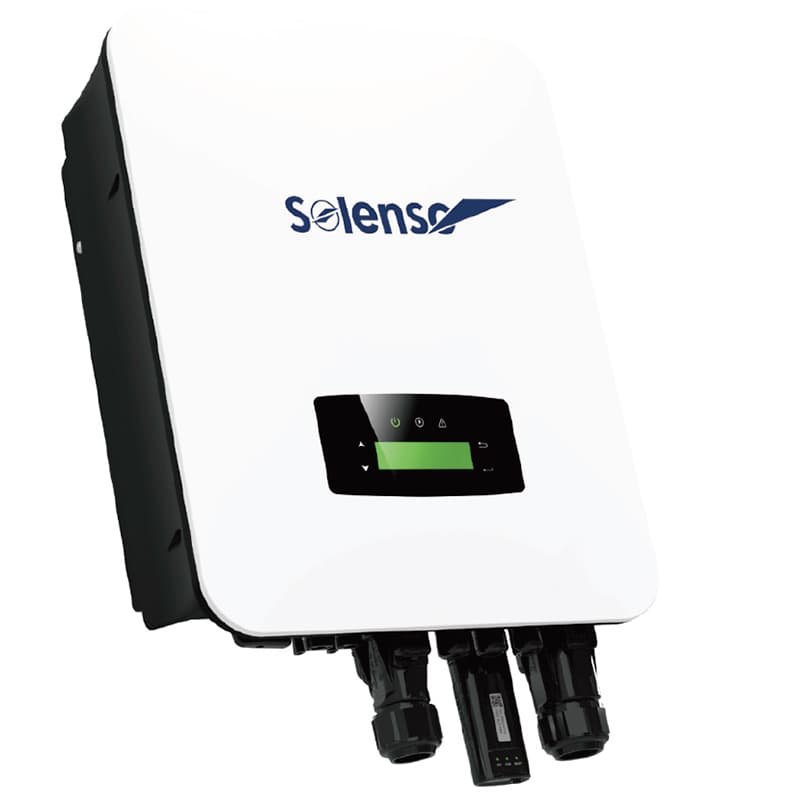

Single-phase AC coupler
SoWave Single Phase Series
- Max power
- 1 kW to 6 kW
- Weight
- ~18.5 kg
- Rated voltage
- 220-230 V / 50-60 Hz
- Ingress protection
- IP65

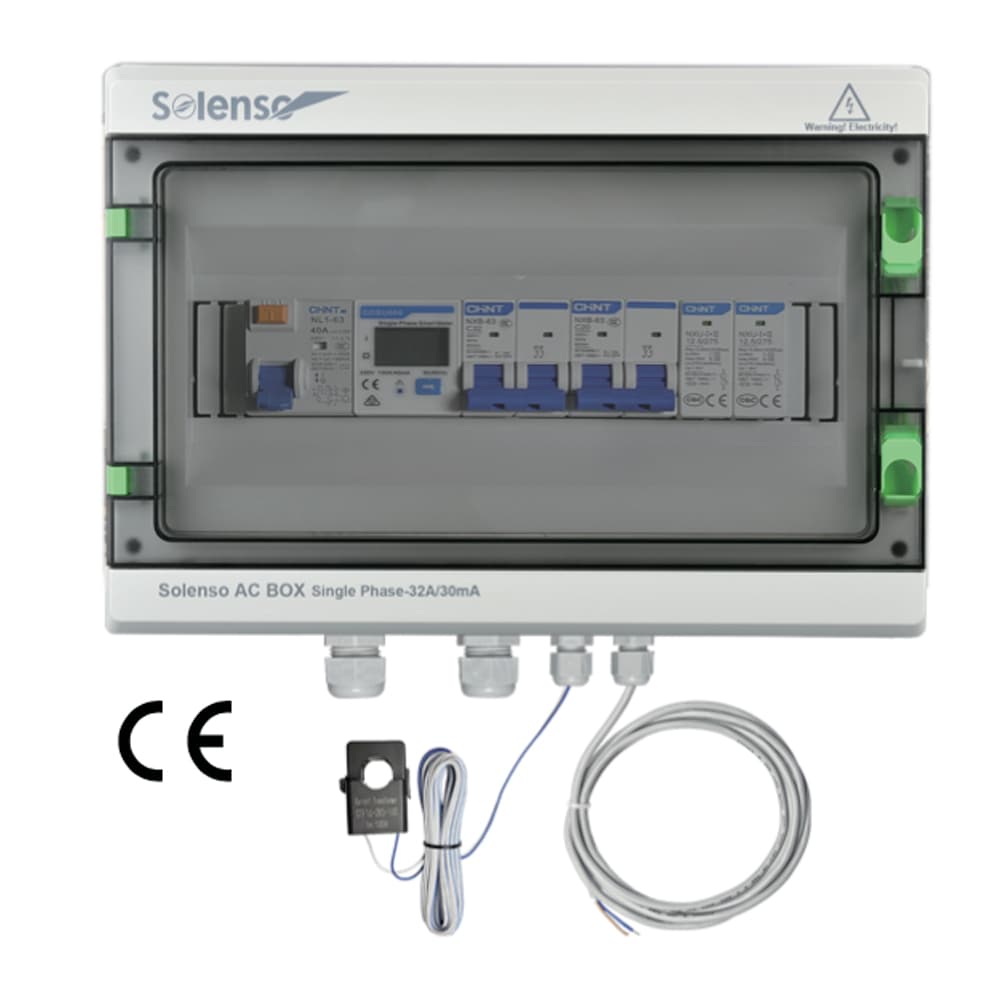

Single-phase AC protection enclosure
AC BOX – S3 / S6
- Max power
- 3000 W (S3), 6000 W (S6)
- Weight
- ~3.5 kg
- Rated voltage
- 220-240 V AC / 50 Hz
- Ingress protection
- IP65 with double insulation

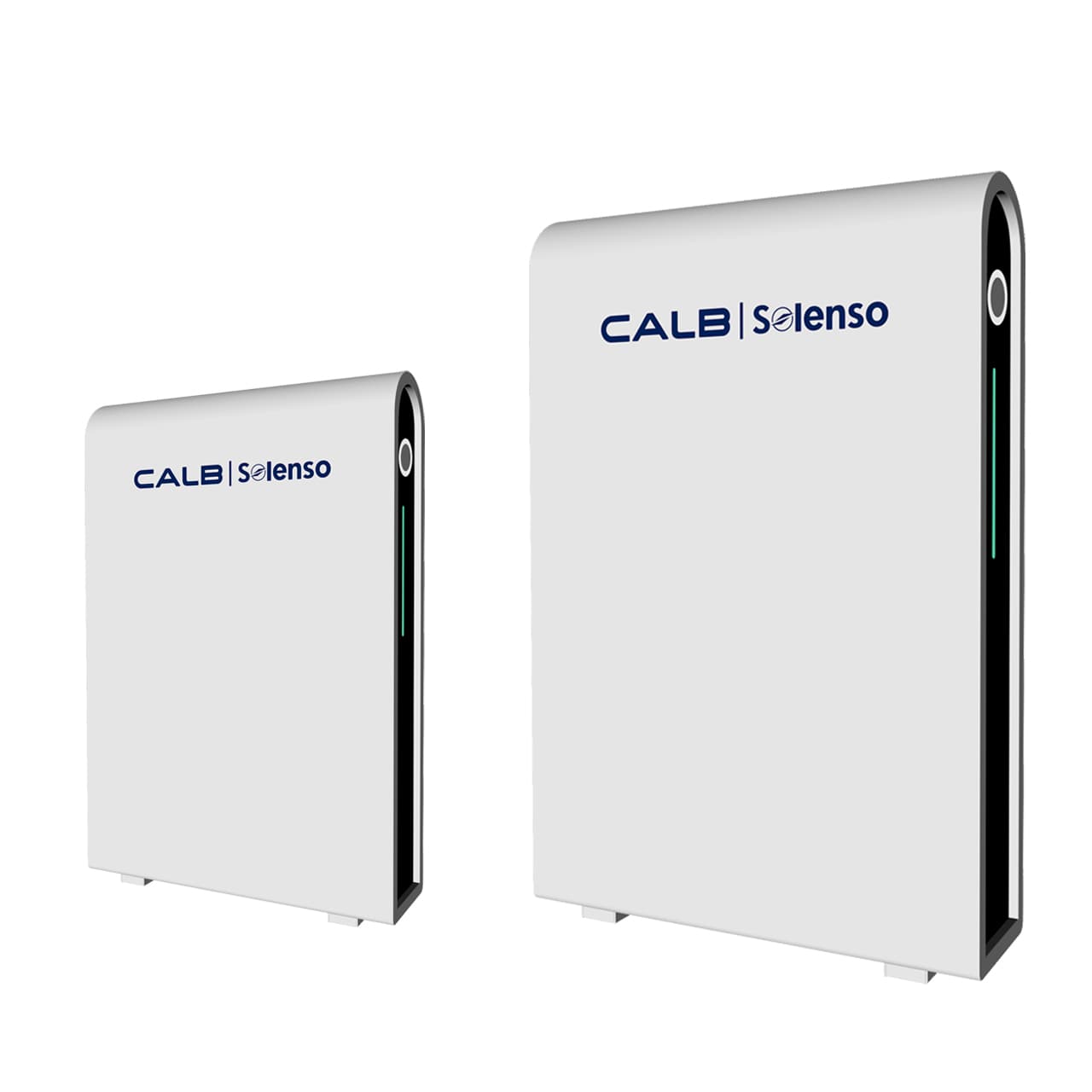

Solar panel battery
