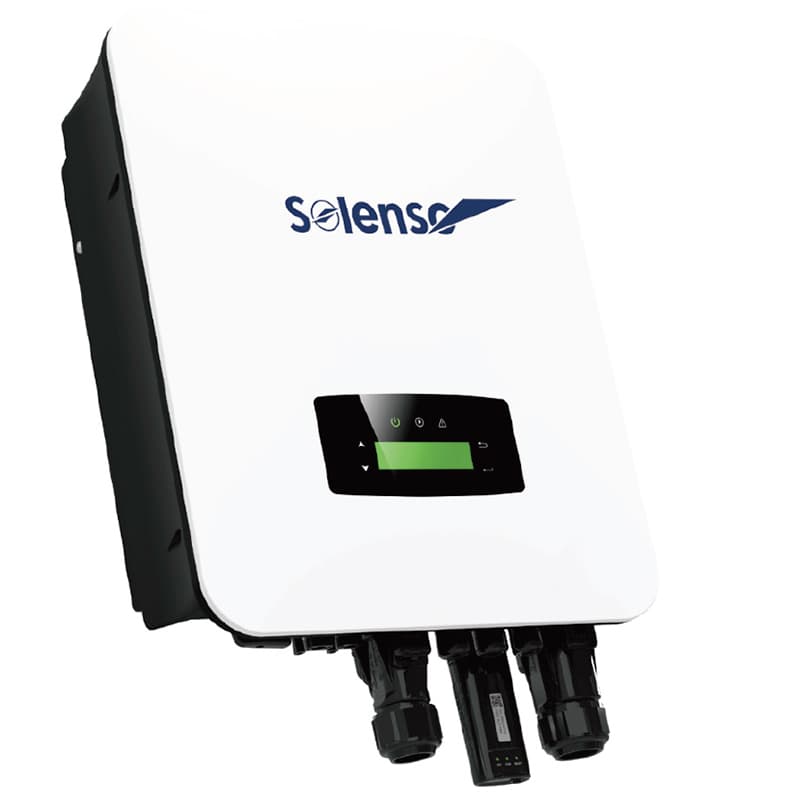

Single-phase AC coupler SoWave Single Phase Series

Max power
1 kW to 6 kW

Weight
~18.5 kg

Rated voltage
220-230 V / 50-60 Hz

Ingress protection
IP65

Dimensions
370 × 535 × 192 mm

Cooling
Intelligent ventilation
Resistance to extreme environments
IP65/NEMA 4X rated, sealed against dust and water and suited to harsh weather.
Plug and play installation
One-piece aluminium design, simplified wall mounting and quick setup over wireless interfaces such as Wi-Fi, RS485 and CAN.
Intelligent real-time monitoring
Built-in Wi-Fi with EMS and BMS compatibility, with production and storage monitoring available remotely.
Certified safety
Built-in protection against surges, overload, short circuits, earth faults, residual current and islanding. Certified to European standards such as EN 50549, VDE and IEC.
*Product images shown may represent the product range, or be for illustration only, and may not depict the product exactly.
