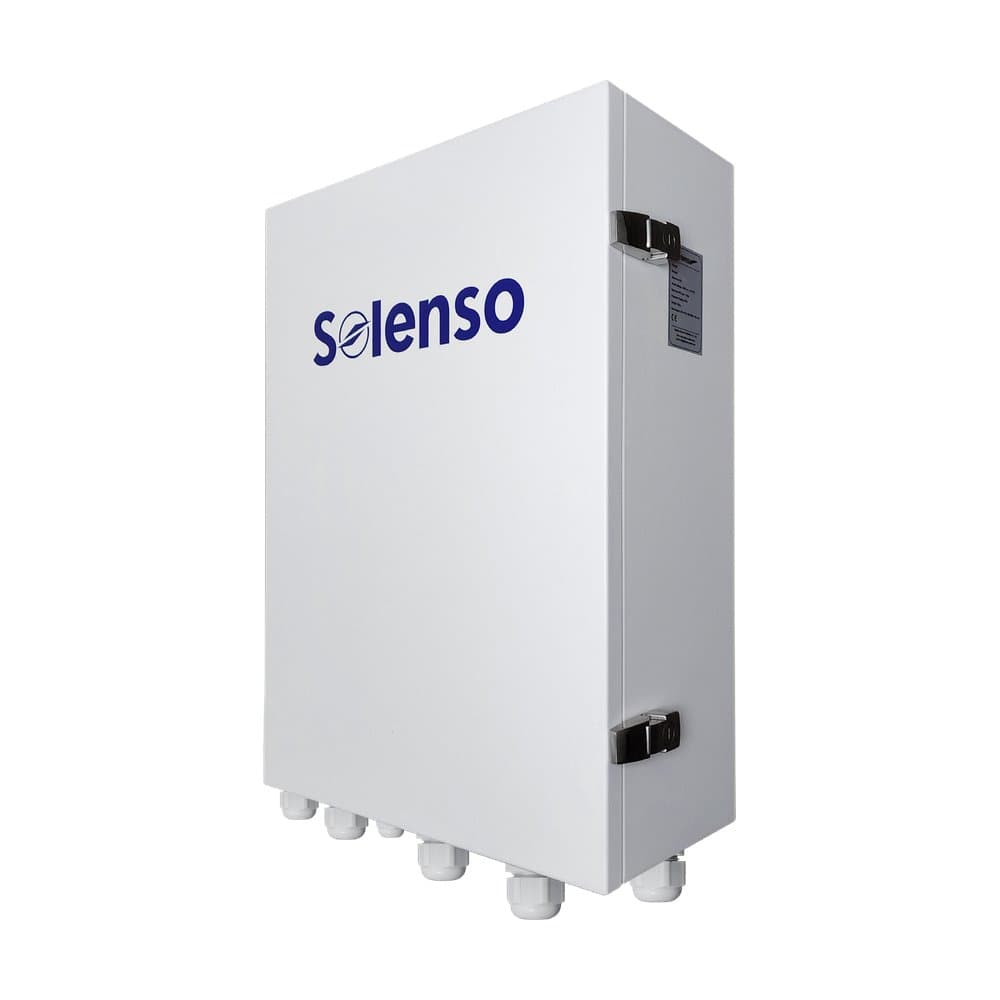

Single-phase AC protection box AC BOX SPlus
SINGLE-PHASE AC BOX WITH TRANSFER SWITCH, UP TO 10 KW
- Max Power
- 10 kW
- Max Current (input)
- 63 A
- Protection Rating
- IP65
- Standard
- NF C 15-100
Reliable outdoors
IP65-rated and double-insulated, the box is protected against dust, water and other environmental hazards. It installs outdoors and operates from -35 to 70 °C.
Easy installation
Delivered fully wired, it saves rebuilding a complete distribution board on site: installation is fast and needs no rework.
Production and consumption at a glance
The AC BOX SPlus communicates with the DTU: household production and consumption can be followed on the Solenso monitoring platform and app.
Built-in transfer switch
An automatic transfer switch NXZBN-63S/2B C63A and an NCH8 40/02 contactor completes the protection devices, to switch the household supply.
Documentation to download
*Product images may represent the product range, or be for illustration purposes only, and may not represent the product exactly.
Technical specifications
| ACBP-S-A | |
|---|---|
| Reference and components | |
| Reference | SAACBP-S-A-B-V1 |
| Automatic transfer switch | NXZBN-63S/2B C63A |
| Meter | DDSU666 |
| Two-pole circuit breaker | NXB-63/2P C32A |
| Type B RCBO | GYR9NE-B 1P+N C32A 300 mA type B |
| Surge protector | NXU-IIG 20 kA / 275 V 1P+N |
| AC contactor | NCH8 40/02 |
| Current transformer | Accuracy up to 1.0% |
| Electrical specifications | |
| Maximum PV input | 10 kW |
| Maximum output power | 10 kW |
| Maximum rated current (input) | 63 A |
| Rated voltage | 230 V AC L+N+PE |
| Mechanical data | |
| Dimensions (W × H × D) | 400 × 550 × 180 mm |
| Weight | 18.5 kg |
| Ambient temperature range | -35 to 70 °C |
| Protection rating | IP65 |
| Cooling | Natural convection |
| Compliance | NF C 15-100 |
