Automatic transfer switch
SOLARC SCTS2-63
AUTOMATIC SWITCHOVER BETWEEN GRID AND BACKUP SOURCE IN UNDER 50 MS
- Transfer Time
- < 50 ms
- Ratings
- 6 to 63 A
- Poles
- 2P or 4P
- Class
- PC, IEC 60947-6-1
The backup source takes over
The switch monitors the normal source (I). On a fault, it transfers the load to the backup source (II), then returns as soon as the normal source is restored. At 230 V, it disconnects below 175 V and above 270 V, and reconnects at 190 V and 250 V.
Automatic or manual

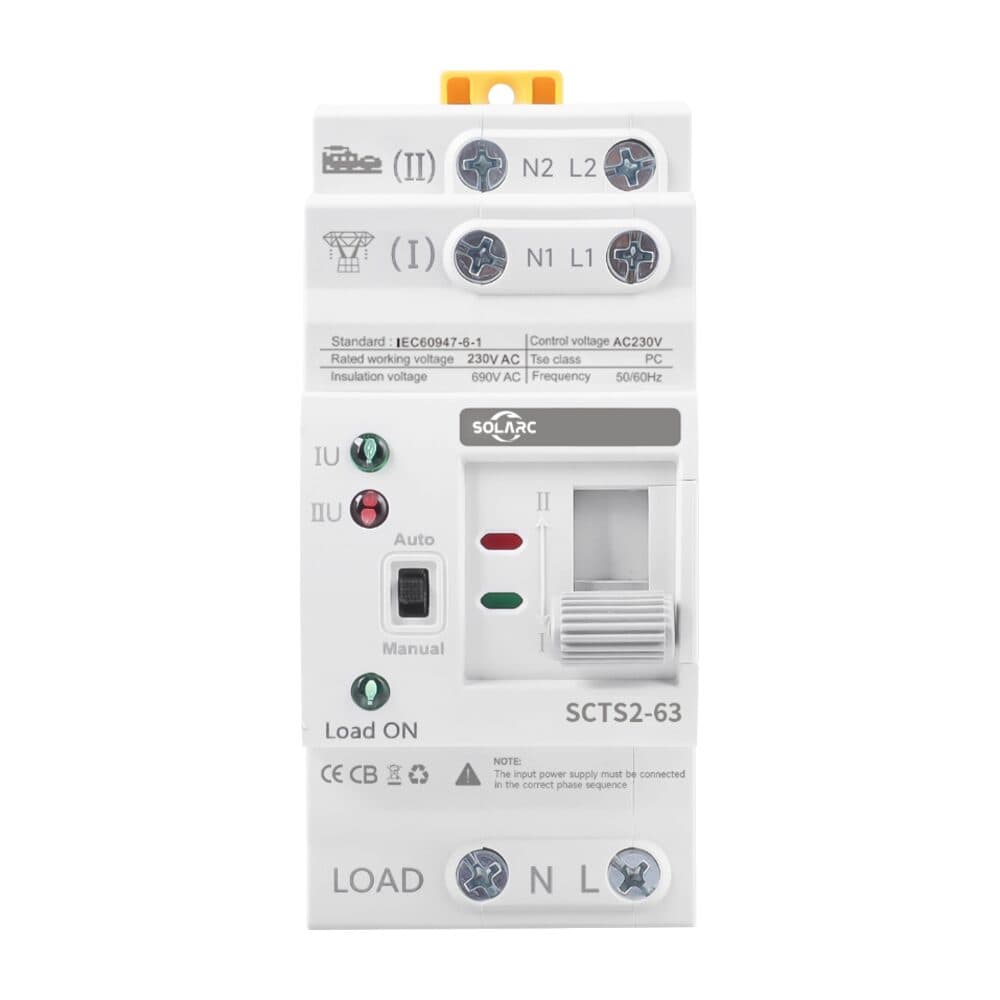

Auto / Manual selector on the front, operating handle and indicators for normal source, backup source and load on. The indicator flashes once for undervoltage, twice for overvoltage.
Grid, generator or inverter
Switches between the public grid, a generator or a pure sine wave inverter of at least 3,000 W. AC-31B utilisation category, PC class.
Compact, on DIN rail
108 × 50.5 × 78 mm in 2P, 108 × 82.5 × 78 mm in 4P, on DIN rail or screw mounted. 690 V insulation voltage, 8 kV impulse withstand, 4,000 mechanical operations.
Documentation to download
*Product images may represent the product range, or be for illustration purposes only, and may not represent the product exactly.
Technical specifications
| SCTS2-63 | |
|---|---|
| References offered by Solenso | |
| SCTS2-63/2P | 63 A, single-phase, CE |
| SCTS2-63/4P | 63 A, three-phase, CE |
| Electrical specifications | |
| Ratings Ie | 6, 10, 16, 20, 25, 32, 40, 50, 63 A |
| Number of poles | 2P, 4P |
| Rated operating voltage | 110, 220, 230, 380 or 400 V AC |
| Frequency | 50/60 Hz |
| Rated insulation voltage | 690 V |
| Impulse withstand | 8 kV |
| Class | PC |
| Utilisation category | AC-31B |
| Conditional short-circuit current | 50 kA, protected by RT16-00 63 A fuse |
| Control and thresholds | |
| Control voltage Us | 220 or 110 V AC, 50/60 Hz, from 85 to 110% of Us |
| Transfer time | < 50 ms |
| Undervoltage (220 V) | Trips at 175 V ±5 V, returns at 190 V ±5 V |
| Overvoltage (220 V) | Trips at 270 V ±5 V, returns at 250 V ±5 V |
| Inverter source | Pure sine wave, 3,000 W minimum |
| Auxiliary circuit | 110 to 400 V AC, Ie = 5 A |
| Installation and service life | |
| Size (H × W × D) | 108 × 50.5 × 78 mm (2P), 108 × 82.5 × 78 mm (4P) |
| Mounting | DIN rail or screw mounting |
| Mechanical endurance | 4,000 operations |
| Electrical endurance | 1,500 operations |
| Standard | IEC 60947-6-1 |
| Markings | CE, CB |
