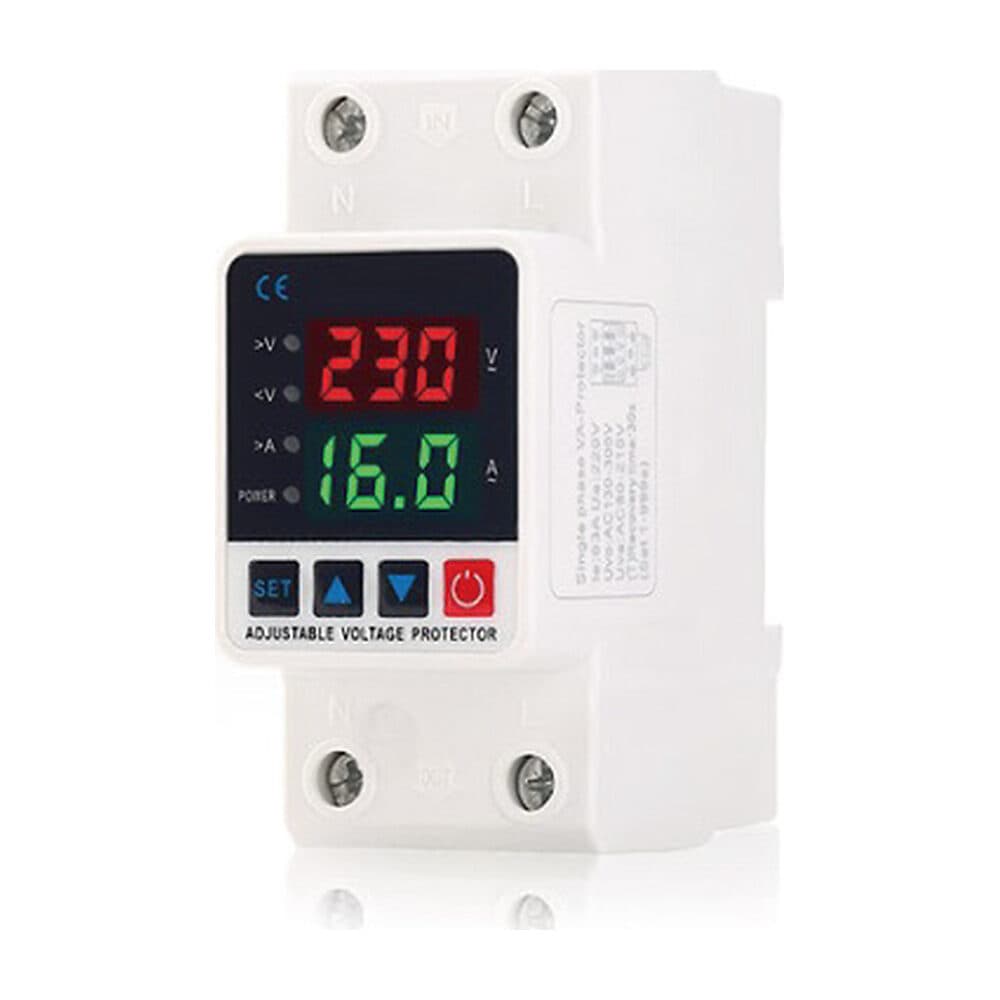

Over and under voltage protection SOLARC SCS6-VA2 single-phase
VOLTAGE, CURRENT, POWER AND FREQUENCY ON DISPLAY, DISCONNECTS AT THE FIRST FAULT
- Maximum Current
- 40, 63, 80 or 100 A
- Overvoltage Setting
- 130 to 300 V
- Undervoltage Setting
- 80 to 210 V
- Accuracy
- < 1%
Three protections in one module
Overvoltage, undervoltage and overcurrent, with a delay against nuisance tripping. The relay recloses on its own when the grid returns to normal.
Readings on display
Large LED display: voltage, current, power and frequency, scrolling automatically or on demand. Voltage accuracy under 1%, voltage and current fault indicators.
Settings and format
Thresholds set with the Set, up and down keys, 5 V hysteresis, 0.5 s trip on overvoltage. 81 × 36 × 66 mm on DIN rail, from -25 to +55 °C. Also works on DC, from 85 to 300 V.
Documentation to download
*Product images may represent the product range, or be for illustration purposes only, and may not represent the product exactly.
Technical specifications
| SCS6-VA2 | |
|---|---|
| References offered by Solenso | |
| SCS6-VA2 | 230 V AC, single-phase |
| Electrical specifications | |
| Supply | L, N: 220 V AC, or 85 to 300 V DC |
| Frequency | 40, 50, 60 or 70 Hz |
| Maximum operating current | 40, 63, 80 or 100 A |
| Overvoltage setting range | 130 to 300 V |
| Undervoltage setting range | 80 to 210 V AC, 85 to 210 V DC |
| Hysteresis | 5 V |
| Overvoltage delay | 0.5 s |
| Voltage accuracy | < 1% |
| Maximum phase voltage in service | 350 V |
| Environment | |
| Size | 81 × 36 × 66 mm |
| Ambient temperature | -25 to +55 °C |
| Humidity | < 50% at 40 °C, non-condensing |
| Altitude | ≤ 2000 m |
| Mounting | 35 mm DIN rail |
Frequently asked questions
Single-phase SCS6-VA2 or three-phase SCS6-N6VA2?
The SCS6-VA2 protects a single-phase supply and carries up to 100 A depending on version. The SCS6-N6VA2 monitors all three phases of a three-phase network and also detects imbalance and wrong phase sequence.
