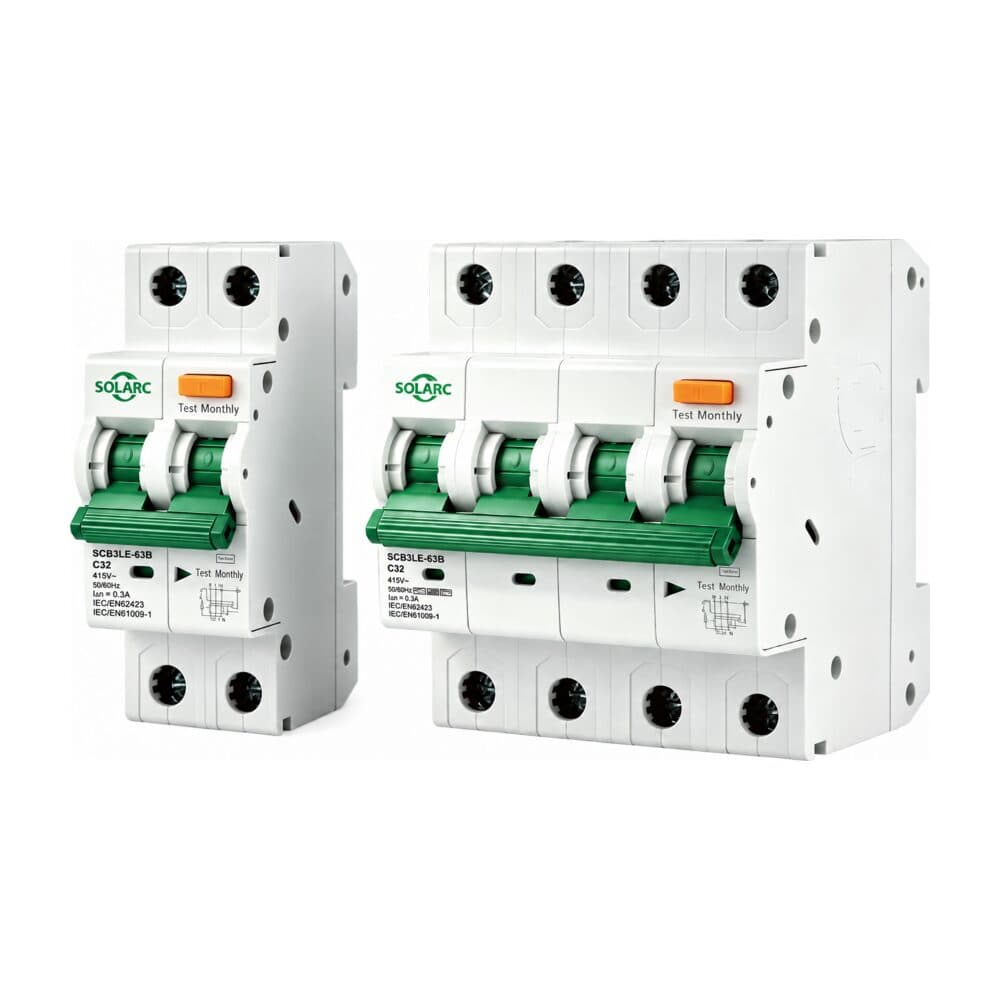

RCBO
SOLARC SCB3LE-63B type B
OVERCURRENT AND EARTH LEAKAGE, DC INCLUDED, IN A SINGLE DEVICE
- Residual Current Type
- Type B
- Sensitivity
- 30 to 300 mA
- Ratings
- 6 to 63 A
- Poles
- 1P+N or 3P+N
Two protections in one module
Thermal, magnetic and residual current releases combined: the circuit is protected against overloads, short circuits and earth leakage. Trips within 0.1 s at rated residual current, on 230/400 V 50/60 Hz networks.
Type B, for DC leakage currents
A type B residual current device detects AC, pulsating DC and smooth DC fault currents. Smooth DC currents, which some inverters, EV chargers and drives can produce, blind a type A or AC device.
Choice of ratings and sensitivities
Ratings from 6 to 63 A in B, C or D curves, sensitivities of 30, 50, 100 or 300 mA. Optional permanent overvoltage protection with a Uvo threshold of 280 V ±5%.
Certified and robust
Compliant with IEC 61009-1, CE, SEMKO, CCC and CB markings. 6 or 10 kA breaking capacity, 10,000 mechanical operations, contact position and residual fault indicator.
Documentation to download
*Product images may represent the product range, or be for illustration purposes only, and may not represent the product exactly.
Technical specifications
| SCB3LE-63B | |
|---|---|
| References offered by Solenso | |
| SCB3LE-63/1P+N | C32, C40 or C63, type B, 300 mA, single-phase |
| SCB3LE-63/3P+N | C32, C40 or C63, type B, 300 mA, three-phase |
| Electrical specifications | |
| Number of poles | 1P+N, 3P+N |
| Rated voltage | 230/400 V (240/415 V) |
| Frame rated current | 63 A |
| Ratings | 6, 10, 16, 20, 25, 32, 40, 50, 63 A |
| Tripping curves | B, C, D |
| Frequency | 50/60 Hz |
| Rated insulation voltage Ui | 500 V |
| Impulse withstand Uimp | 4 kV |
| Breaking capacity Icn / Ics | 6 or 10 kA / 6 or 7.5 kA |
| Residual current protection | |
| Type | B: AC, pulsating DC and smooth DC faults |
| Sensitivity IΔn | 30, 50, 100 or 300 mA |
| Maximum break time at IΔn | 0.1 s |
| Overvoltage protection | Optional, Uvo = 280 V ±5% |
| Installation | |
| Mounting | 35 mm DIN rail |
| Maximum connection cross-section | 25 mm² |
| Maximum tightening torque | 3.5 N·m |
| Ingress protection | IP20 |
| Supply direction | Top and bottom |
| Altitude | ≤ 2000 m |
| Storage temperature | -35 to +70 °C |
| Service life and standards | |
| Mechanical endurance | 10,000 operations |
| Electrical endurance | 4,000 operations |
| Standard | IEC 61009-1 |
| Certifications | CE, SEMKO, CCC, CB |
Frequently asked questions
When is a type B residual current device required?
As soon as a device on the circuit can produce a smooth DC fault current: an EV charger without built-in DC leakage detection, an inverter whose manufacturer requires type B, a variable speed drive or a heat pump with a controlled motor. A type A or AC device can then be blinded and fail to trip. The Solenso EV+ charger has built-in 6 mA DC detection and only needs a type A device upstream.
See the Solenso EV+ chargerRCBO or RCCB: what is the difference?
An RCCB only detects earth leakage and must be paired with circuit breakers to protect against overloads. An RCBO combines both functions in a single device per circuit: a fault only cuts the circuit concerned, while the rest of the installation stays powered.
Which sensitivity should I choose: 30 mA or 300 mA?
30 mA protects people against electric shock: it is the sensitivity used on the final circuits of a home. The 100 and 300 mA sensitivities protect against fire and sit at the head of the installation, where they provide selectivity with the 30 mA devices downstream.
See the whole protection range
